Turbocad - Simple Extrude - Simple way on How to transform 2D in 3D objects

Want to visualize your 2D drawings objects in 3D modelisation? The Turbocad Simple Extrude tool will be your friend to do this !


You can download the Turbocad starting file for this tutorial by clicking this link

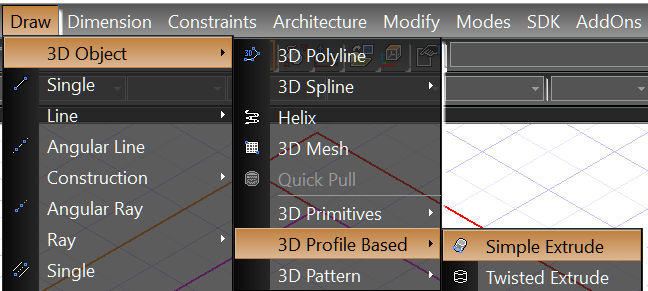

Access the Simple Extrude tool by the toolbar or go to the Draw -- 3D objects -- 3D Based -- Simple Extrude






Note: the Simple Extrude tool is including in versions Turbocad Deluxe, Turbocad Professional, Turbocad Pro Platinum. These 3 versions are available in free trial version and fully functional for 30 days :-) Click on the links in blue to learn more

To simply extrude and object once you had selected the Simple Extrude tool, select and object and automaticaly an height of a 3D shape from this 2D object appears. You can define the new height of this object arbitrarily above or down the object or enter a precise value (positive or negative) in the height box at the bottom of the Turbocad window and press Enter key



If you want to complete this tutorial, enter these dimensions

Back of the couch (red rectangle) : 5 inches
Arms of the couch (coral rectangles): 3.5 inches
Cushion of the couch (magenta rectangle) : 2 inches
Round table (blue circle) : 2 inches
Corner table (green polygone) : 2 inches

These new 3D objects can be edit or modify like any others 3D objects
